Project case

Fabricated mesh panels for a plant service area

A fabricated panel package for separating service access and equipment zones in an industrial plant.

Welded & Formed Mesh

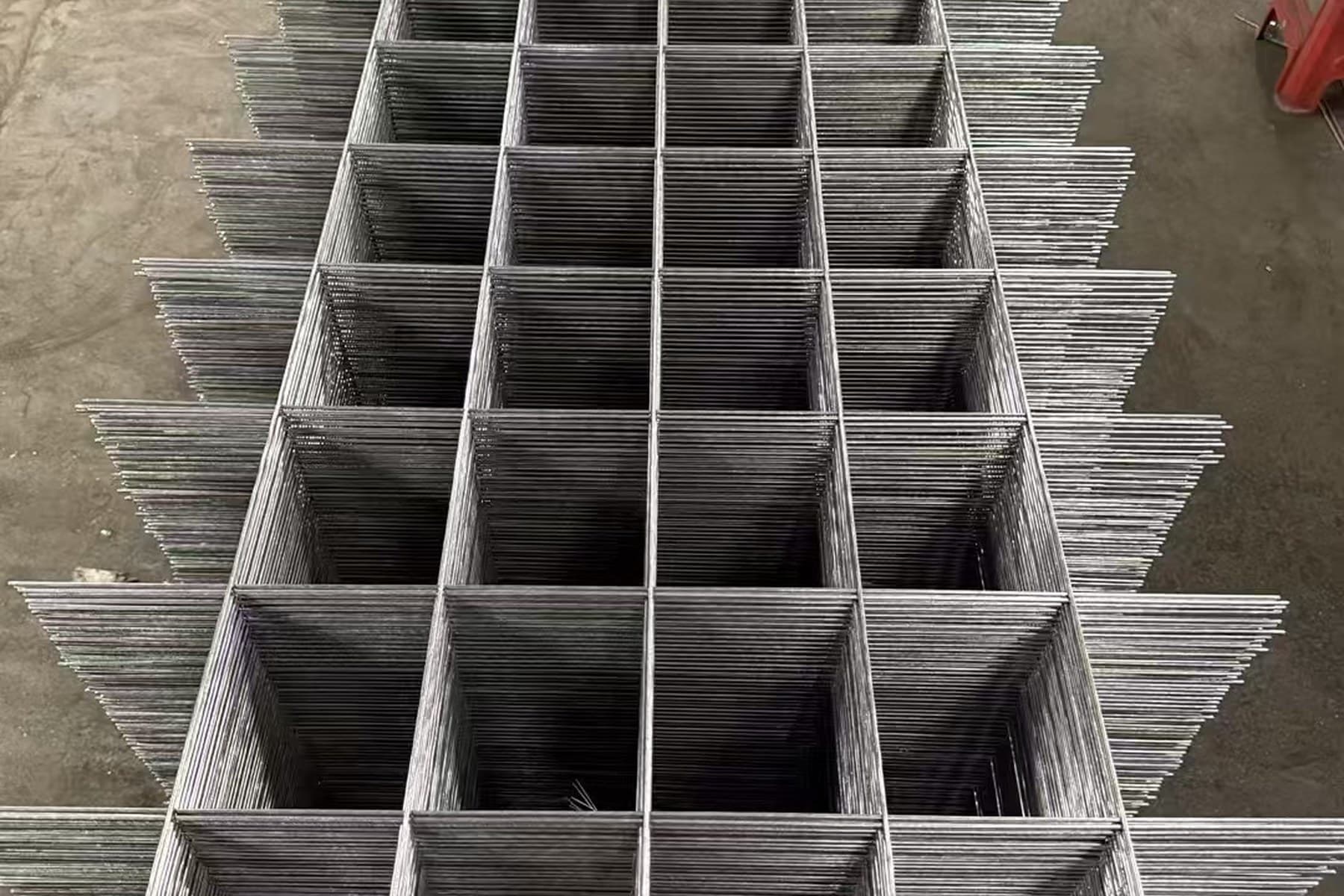

Reference photograph for Fabricated mesh panels for a plant service area

Project dossier

Project context

Application background, visual evidence and technical selection data are presented as one project record.

An industrial separation case where panel geometry, edge treatment and fixing locations had to align with an existing steel structure.

Application: Industrial separation
Application: Construction reinforcement

Reference photograph for Fabricated mesh panels for a plant service area — Site and product reference photograph.

The brief combined fixed panel dimensions, repeatable mounting points and a durable finish for an indoor-outdoor service area. Finished panels were grouped by zone to simplify installation and handover.

Reference photograph for Fabricated mesh panels for a plant service area — Site and product reference photograph.

Technical brief

Products and specifications

Fabrication brief

Construction: Welded, expanded or formed
Geometry: Opening and finished panel size
Edge: Frame, cut or fixing requirement
