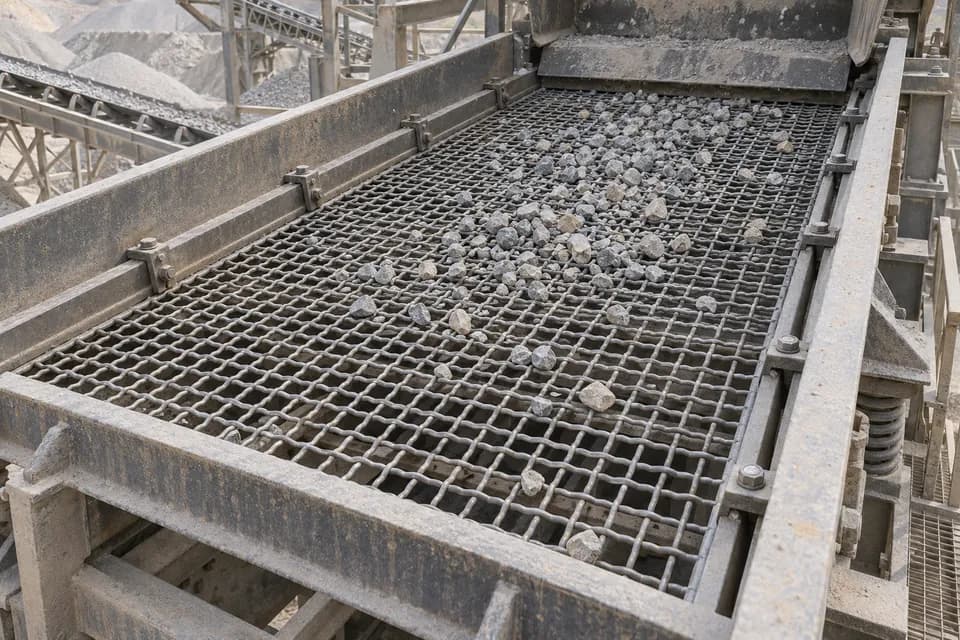

Quarry screening and wear review

This project case illustrates a sourcing review for replacement quarry screening mesh. It is not evidence of a named customer site, plant result or verified service life. The example shows how material duty, separation target, wear history and deck dimensions can be organised before a screen construction is compared with an existing panel or drawing.

This is a project case for sourcing discussion only. It does not identify a named customer, a verified installation, a project location or a completed BOHANG contract. Final engineering and site approval remain with the responsible project team.

Reference context

The illustrative duty handles graded stone with changing particle shape, fines and moisture. Existing screens experience localised wear, while replacement access requires panels that match the deck and handling equipment.

A useful review asks which feed condition is representative, where impact and abrasion concentrate, and what operating change prompted the review. Recording those points in the same schedule reduces assumptions between the product description, the drawing, the quotation and the packing list. It also makes later revisions easier to identify because the reason for each selection remains visible.

Replace these example conditions with plant observations and the responsible process team’s approved target. For procurement, the important boundary is to separate a nominal product description from the values that are actually approved for manufacture. Where site conditions, standards or calculations govern the result, the responsible designer or buyer should confirm them before production release.

Feed and separation target

A useful brief records material type, top size, near-size content, moisture and required cut. It should also identify whether blinding, pegging, carryover or low throughput is the main concern.

A useful review asks what must pass through the screen, which oversize must be retained, and how acceptable product is evaluated. Recording those points in the same schedule reduces assumptions between the product description, the drawing, the quotation and the packing list. It also makes later revisions easier to identify because the reason for each selection remains visible.

Keep process targets separate from mesh dimensions so the plant team can confirm whether the proposed opening supports the intended duty. For procurement, the important boundary is to separate a nominal product description from the values that are actually approved for manufacture. Where site conditions, standards or calculations govern the result, the responsible designer or buyer should confirm them before production release.

Screen-deck interface

Panel length, width, hook profile, tension direction, crown, support spacing and clamp condition determine fit. Measuring a used panel can be misleading if it is stretched, worn or distorted.

A useful review asks which drawing or new sample controls fit, where hooks and clamps engage, and how support bars contact the mesh. Recording those points in the same schedule reduces assumptions between the product description, the drawing, the quotation and the packing list. It also makes later revisions easier to identify because the reason for each selection remains visible.

Use a controlled deck drawing when available and mark every dimension that affects installation. For procurement, the important boundary is to separate a nominal product description from the values that are actually approved for manufacture. Where site conditions, standards or calculations govern the result, the responsible designer or buyer should confirm them before production release.

Wear review

Photographs and removed-screen observations can show whether failure begins at impact zones, support contact, hooks or general abrasion. Wire and weave comparisons should respond to that pattern while preserving the required opening.

A useful review asks where the first failure appears, how long planned maintenance intervals are, and whether previous changes improved or reduced performance. Recording those points in the same schedule reduces assumptions between the product description, the drawing, the quotation and the packing list. It also makes later revisions easier to identify because the reason for each selection remains visible.

Treat wear history as evidence for comparison, not as a promise that one construction will achieve a fixed service life. For procurement, the important boundary is to separate a nominal product description from the values that are actually approved for manufacture. Where site conditions, standards or calculations govern the result, the responsible designer or buyer should confirm them before production release.

Sourcing checklist

Use the reference to collect both operating and dimensional information before quotation. A concise schedule is more useful than a long message with missing values, so mark unknown items clearly and attach the drawing, bill of quantities or reference image that controls the discussion.

• Material feed top size and moisture
• Cut target and acceptable carryover
• Existing aperture wire and weave
• Panel size hook and tension details
• Deck support and clamp arrangement
• Wear photographs quantity and replacement timing

The example produces a more useful replacement inquiry while keeping process performance and maintenance decisions with the quarry team. When one of these values is not fixed, state the decision owner and the date by which it is needed. That keeps an open technical question from becoming an unrecorded production assumption.

Continue the sourcing review

This project case does not establish throughput, screening efficiency or service life and is not a substitute for equipment and process review. Use the related BOHANG routes below to compare the relevant product family, application context and supply capability before sending the final inquiry.
